Home lift
Volare
Engineered for simplicity, built for value.

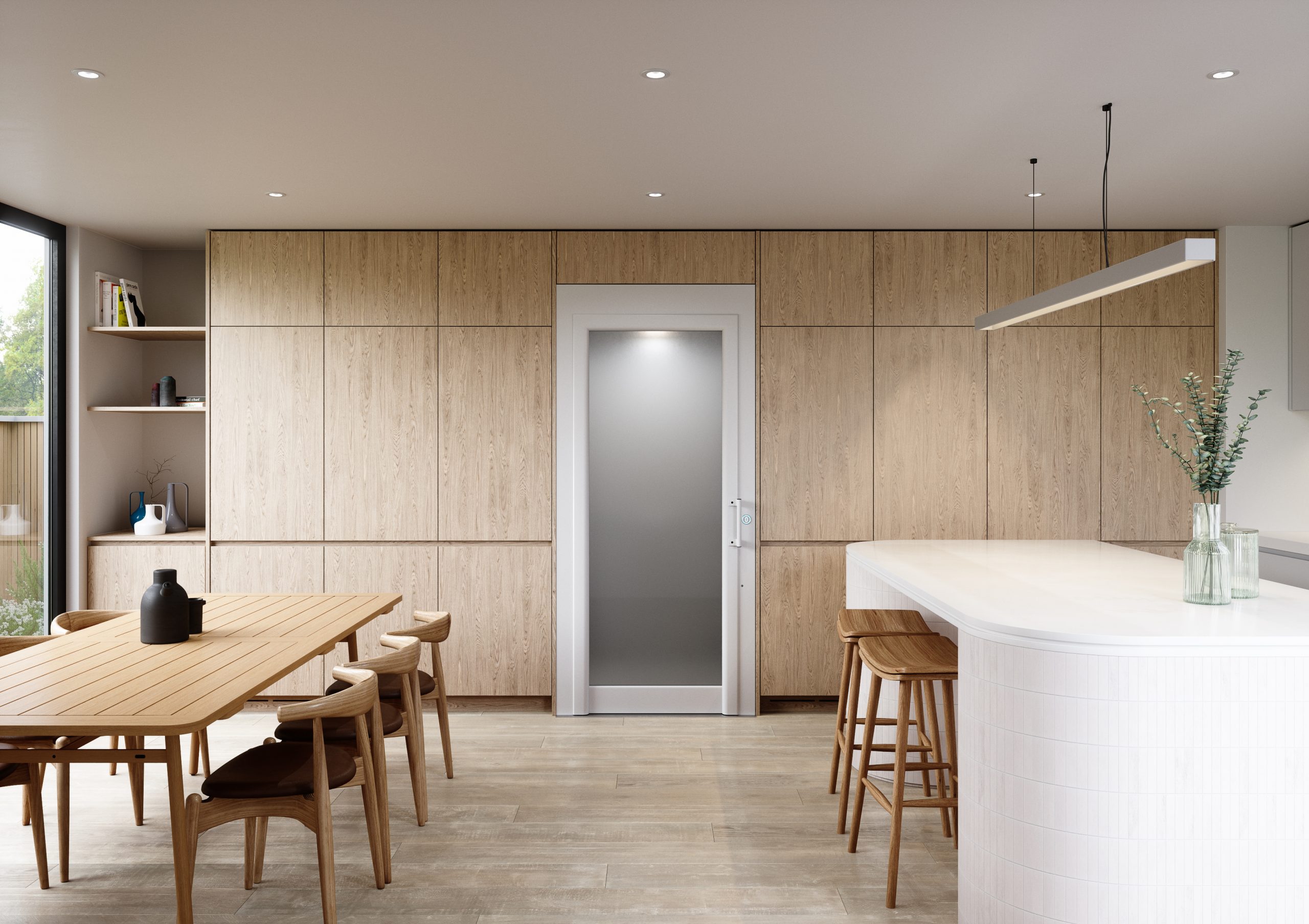

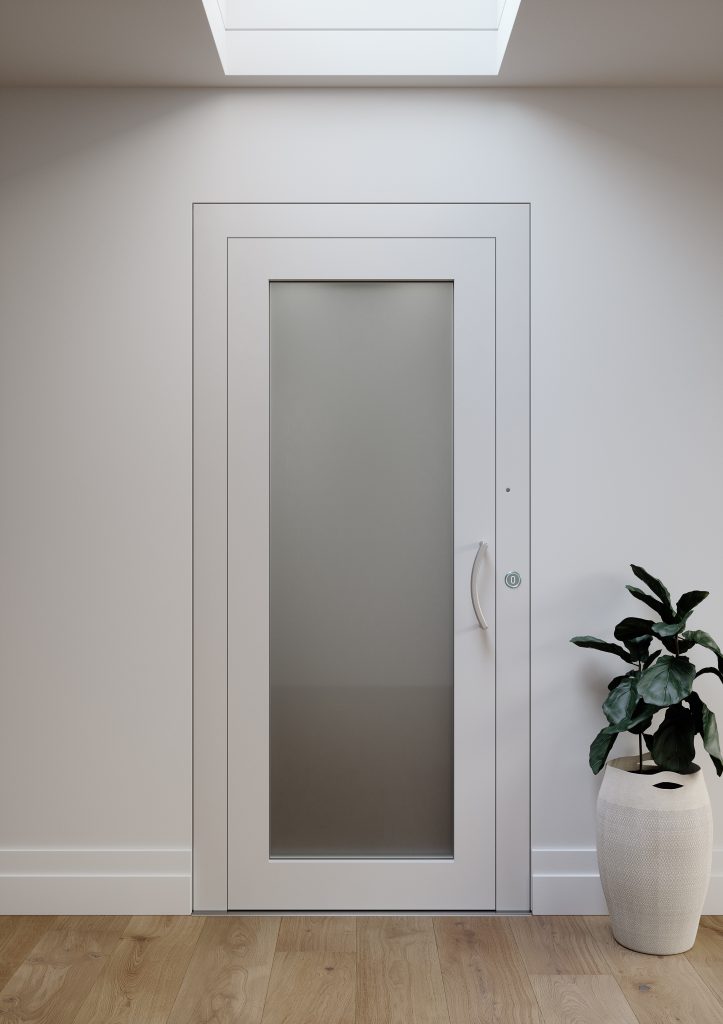

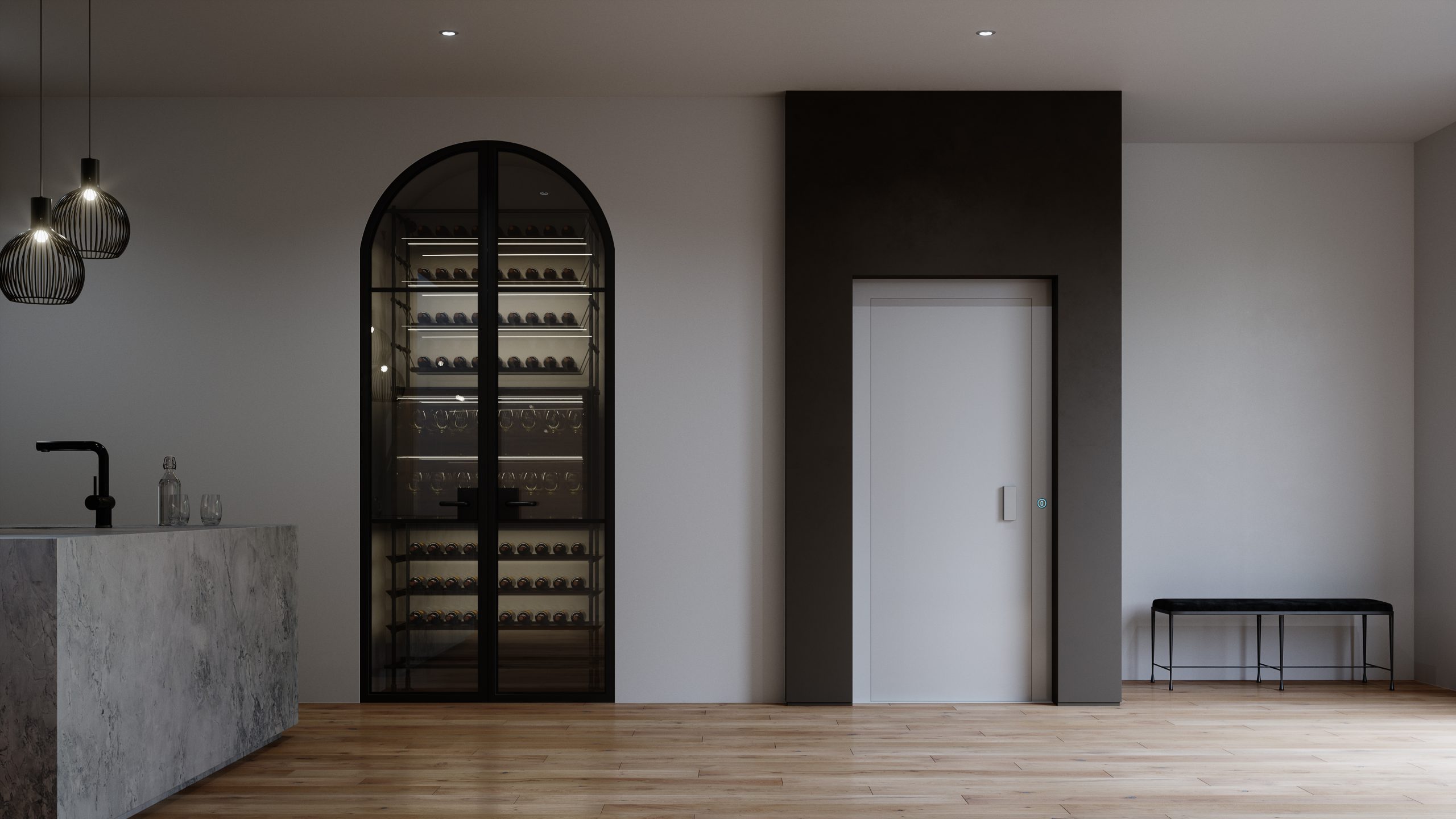

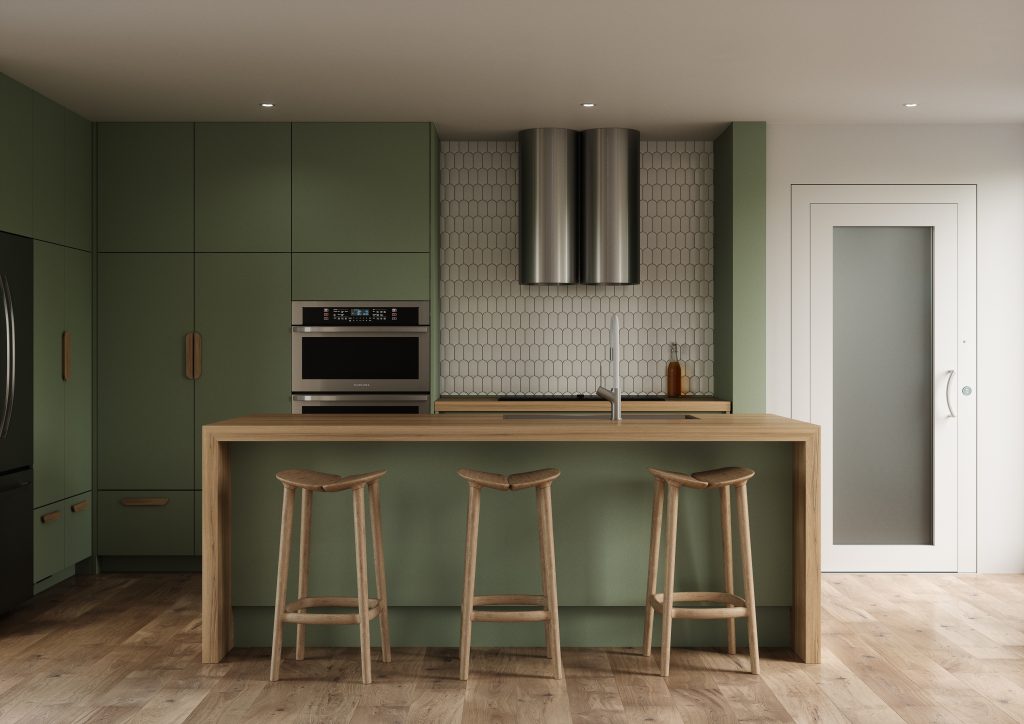

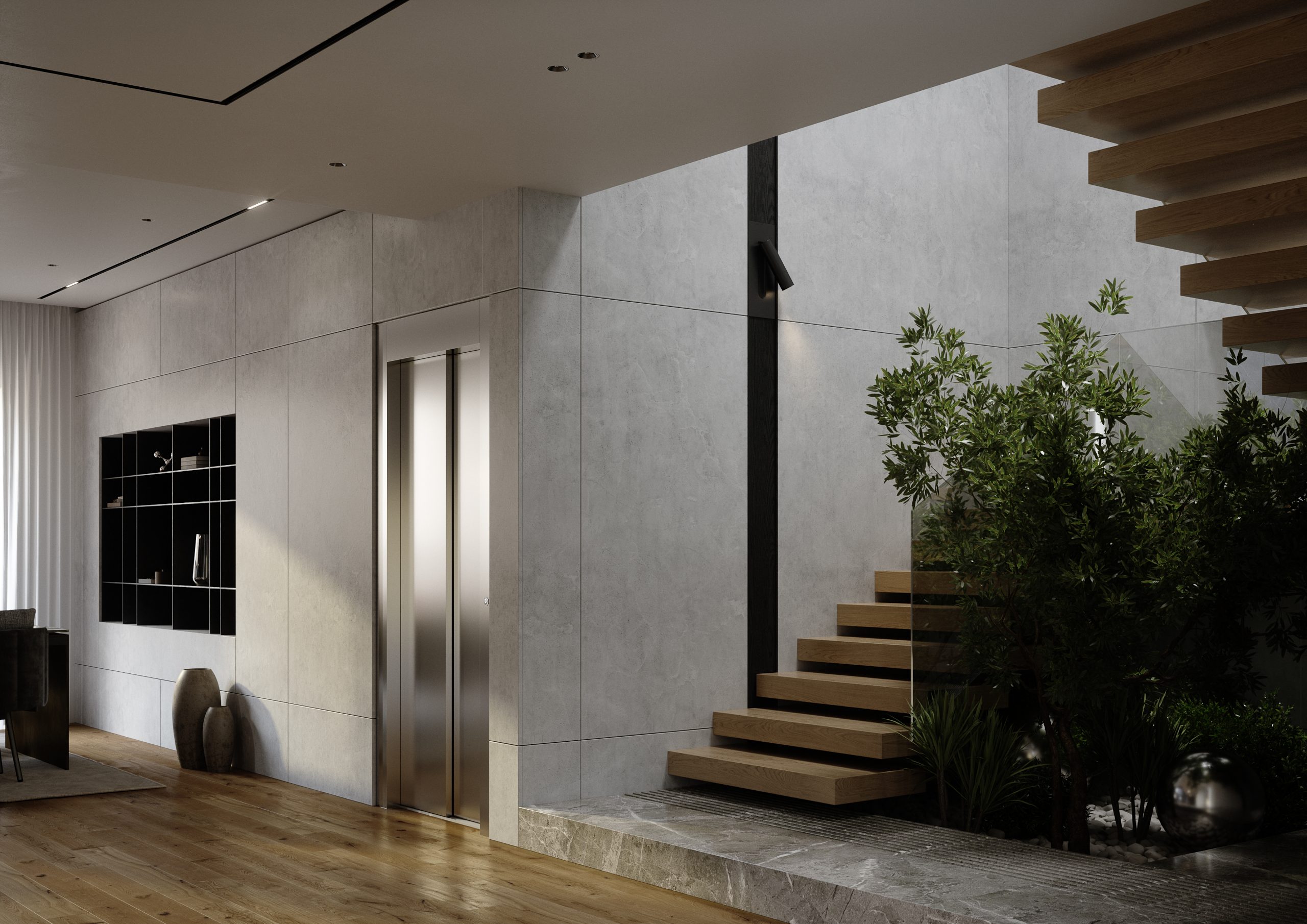

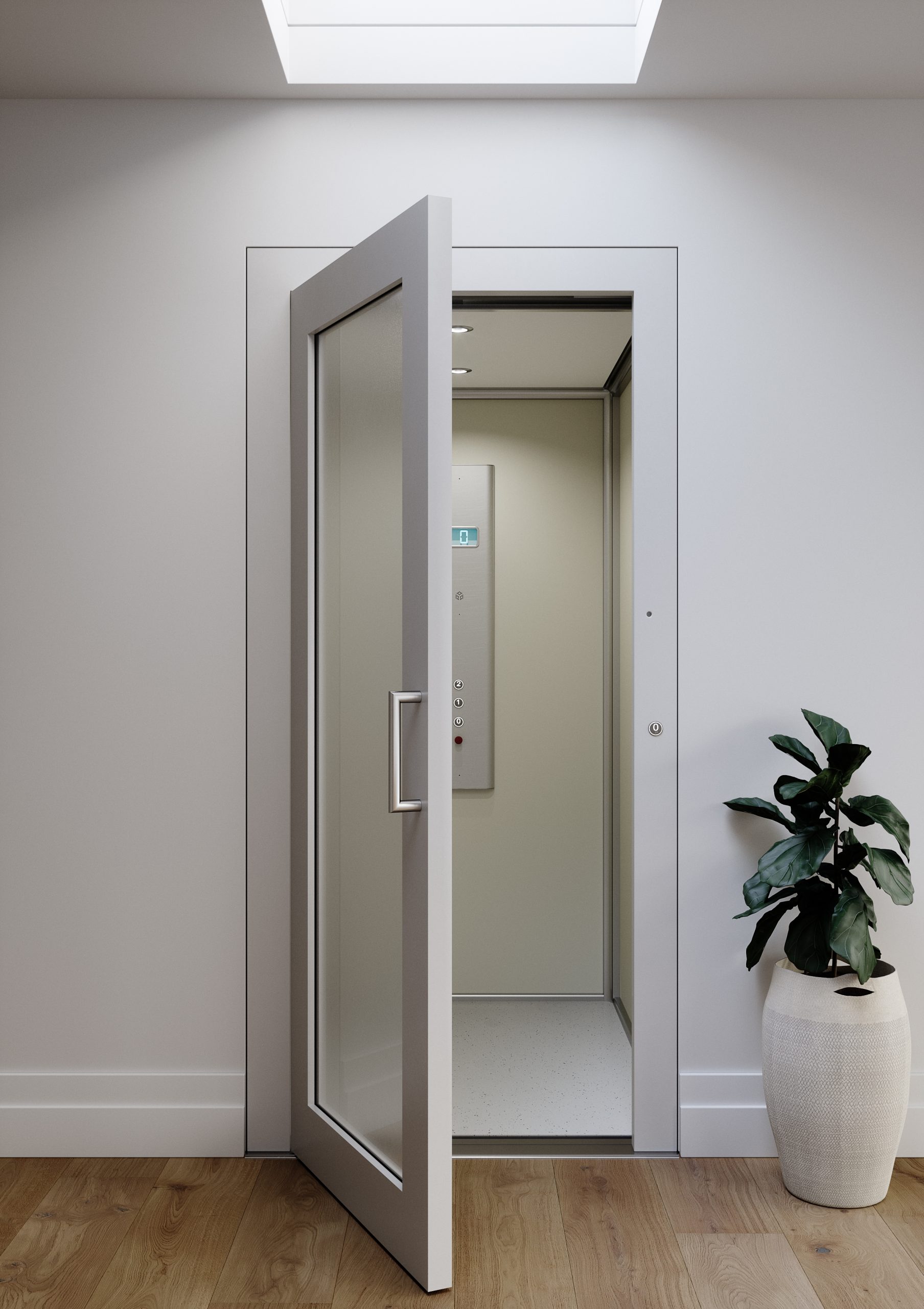

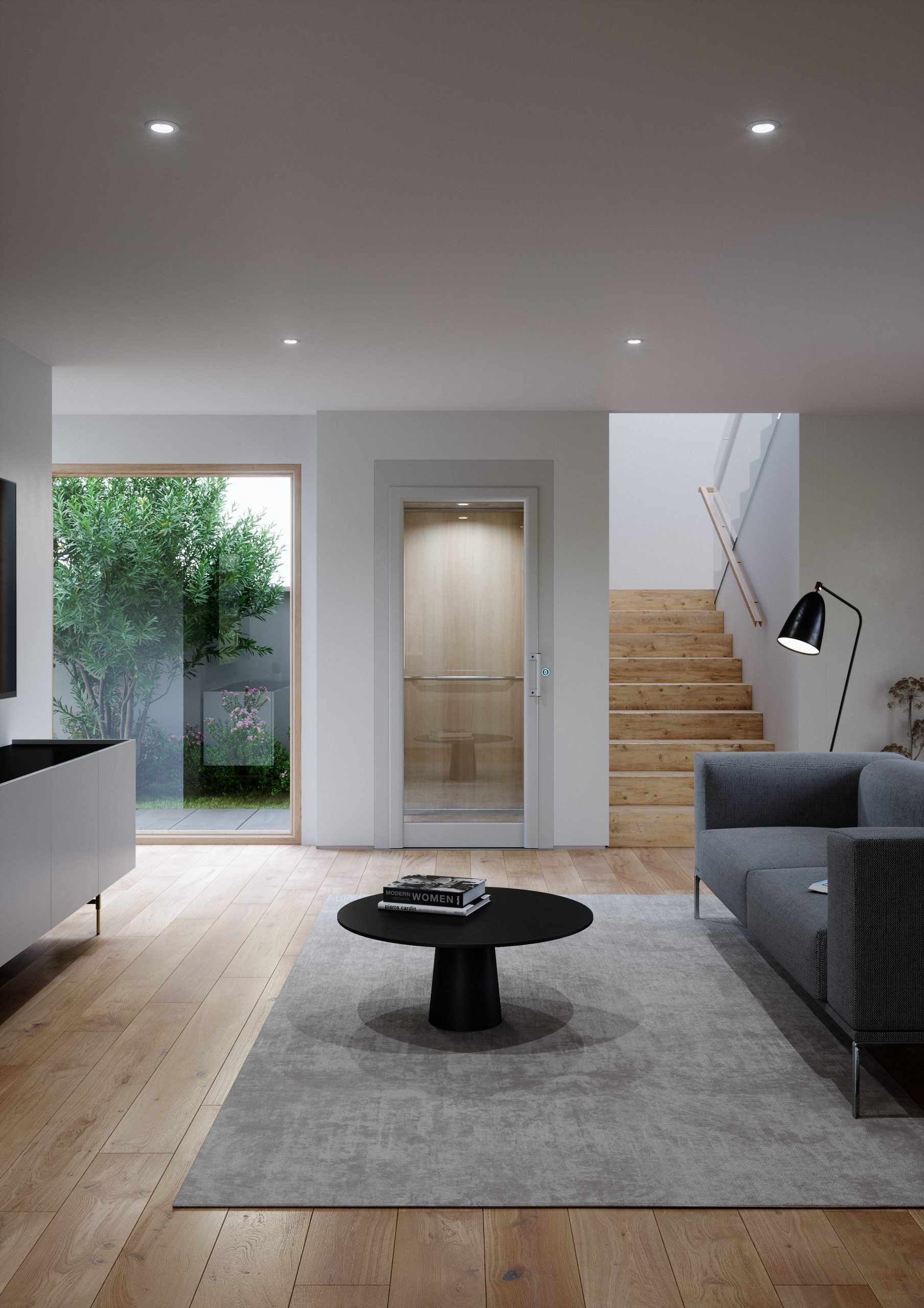

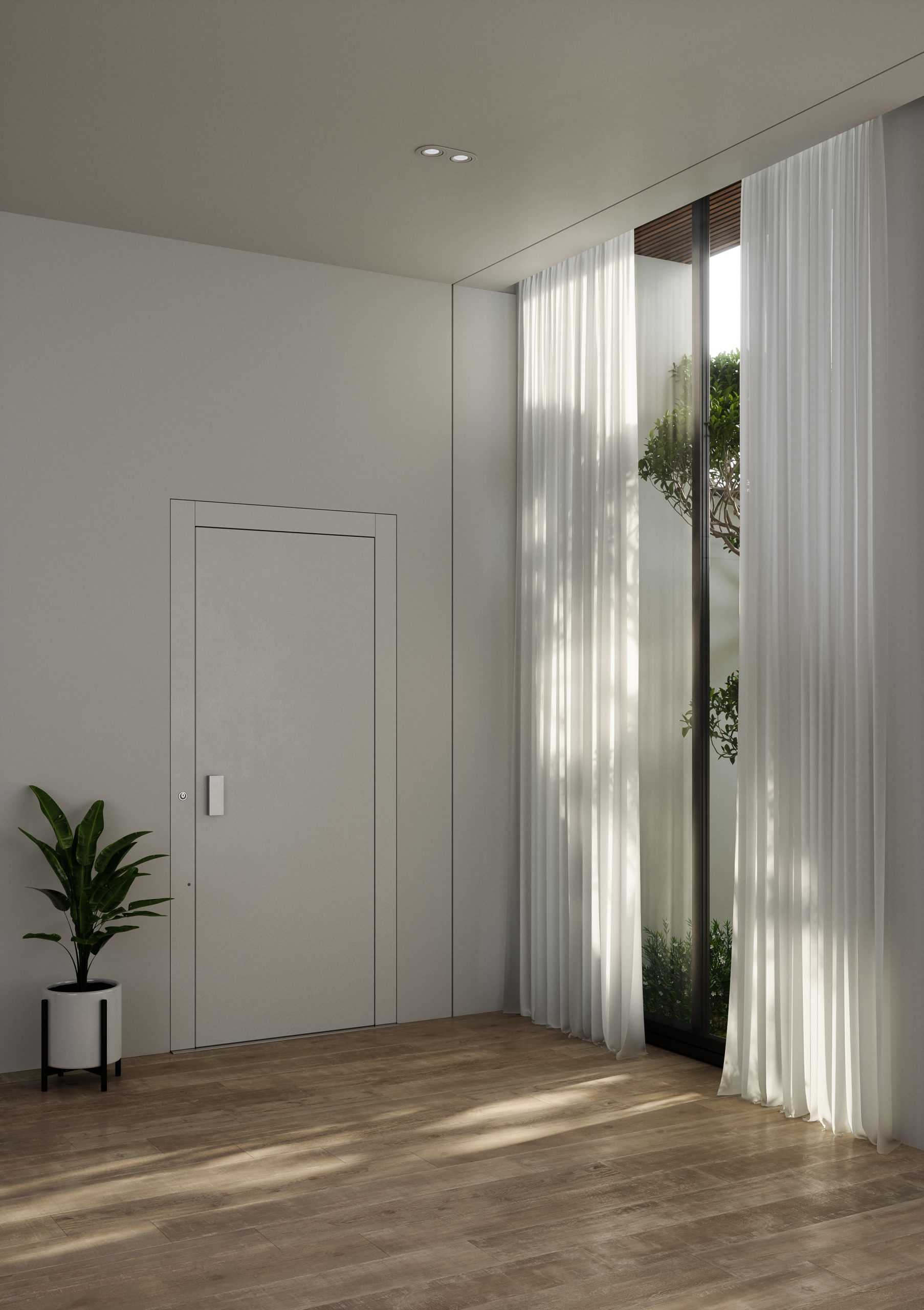

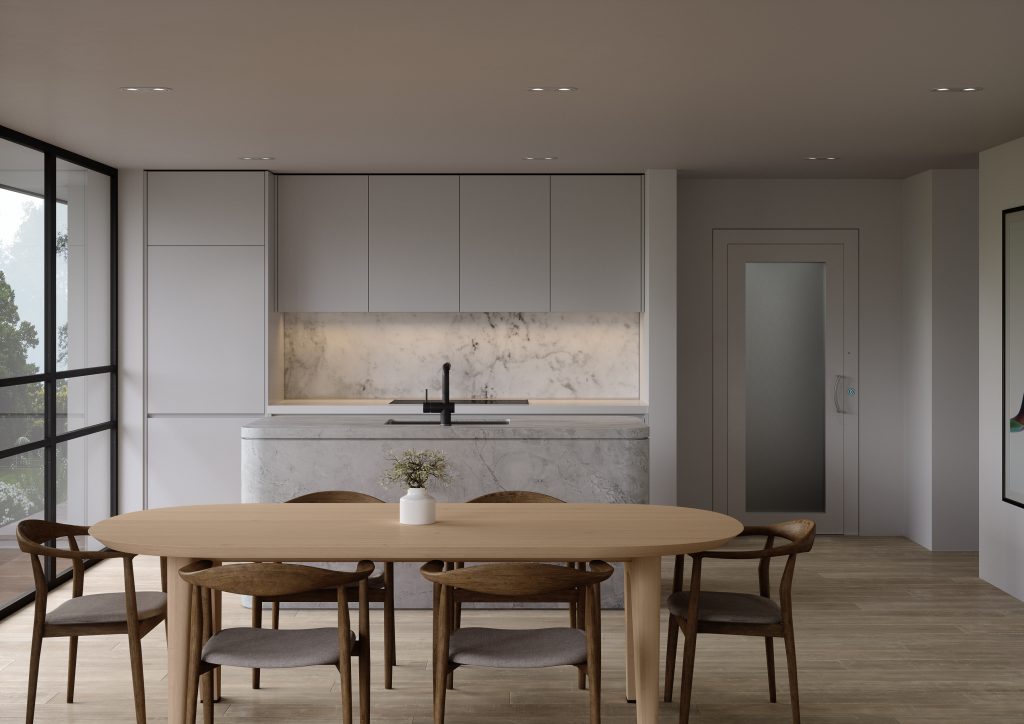

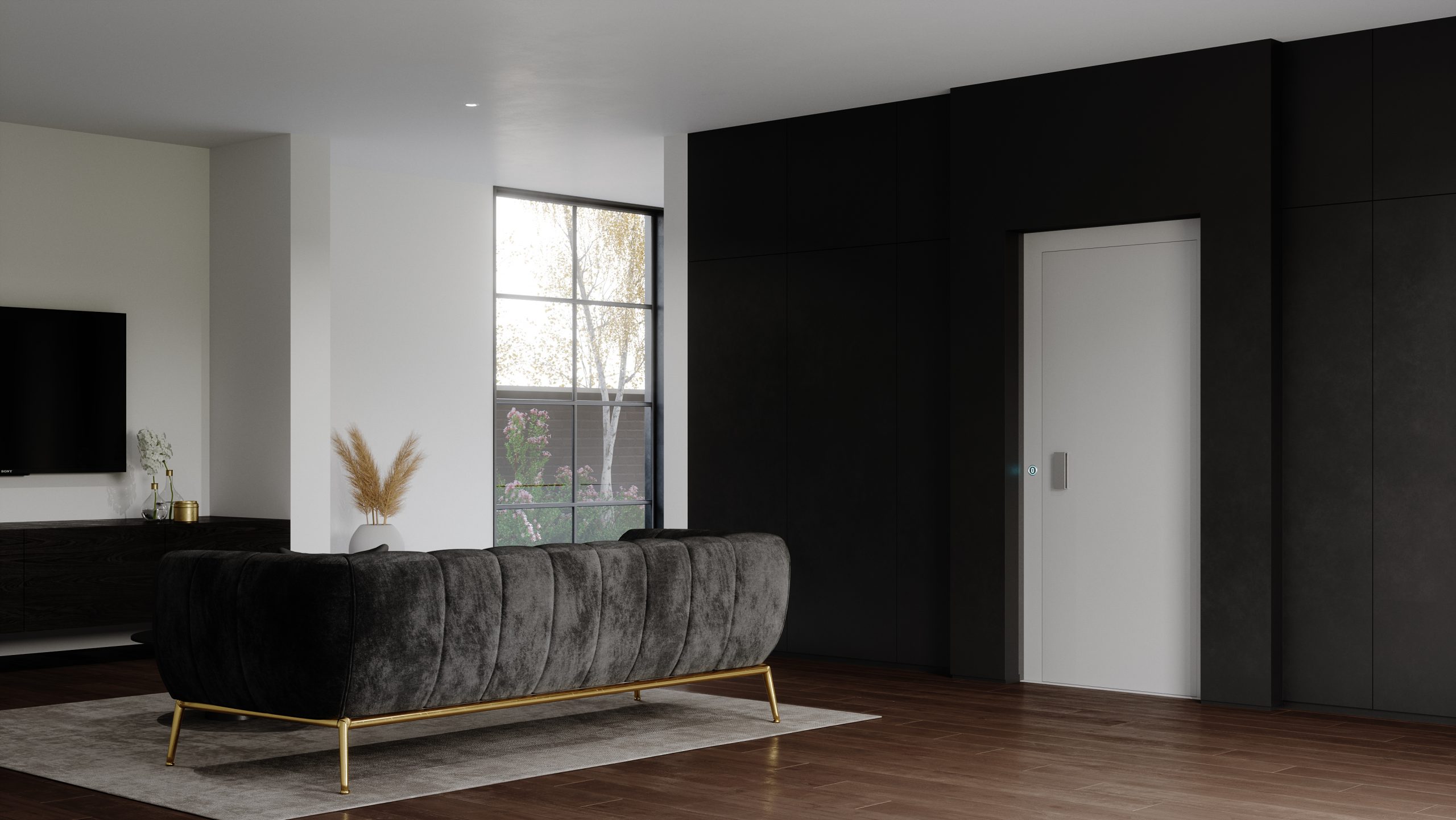

Eltec Volare is a fully electric residential home lift, engineered to deliver reliable performance and high-quality design at a competitive price. With carefully selected finishes, it blends seamlessly into any home interior. Installation is straightforward and efficient. The lift runs on a standard single-phase 10A power supply, eliminating the need for three-phase wiring and reducing both electrical complexity and installation costs. Fast and clean to install, Volare exemplifies Eltec’s commitment to quality. Premium materials are standard, with the option to customise cabin panels to achieve a perfect match with the surrounding interior. Available from stock for rapid delivery, Volare comes in one standard size and integrates effortlessly with dedicated shaft solutions, ensuring a streamlined installation and a refined architectural finish. This product is exclusively supplied through our certified Australian partner, ensuring local support and service.
-
Optimised customisations ensure both refined aesthetics and fast installation, supported by local product stock;
-
Compact dimensions: Pit 140 mm, headroom 2400 mm, maximum travel 7,5 m;
-
Control box: W 256 x D 168 x H1982 mm;
-
Capacity up to 300 kg, speed 0.25 m/s;
-

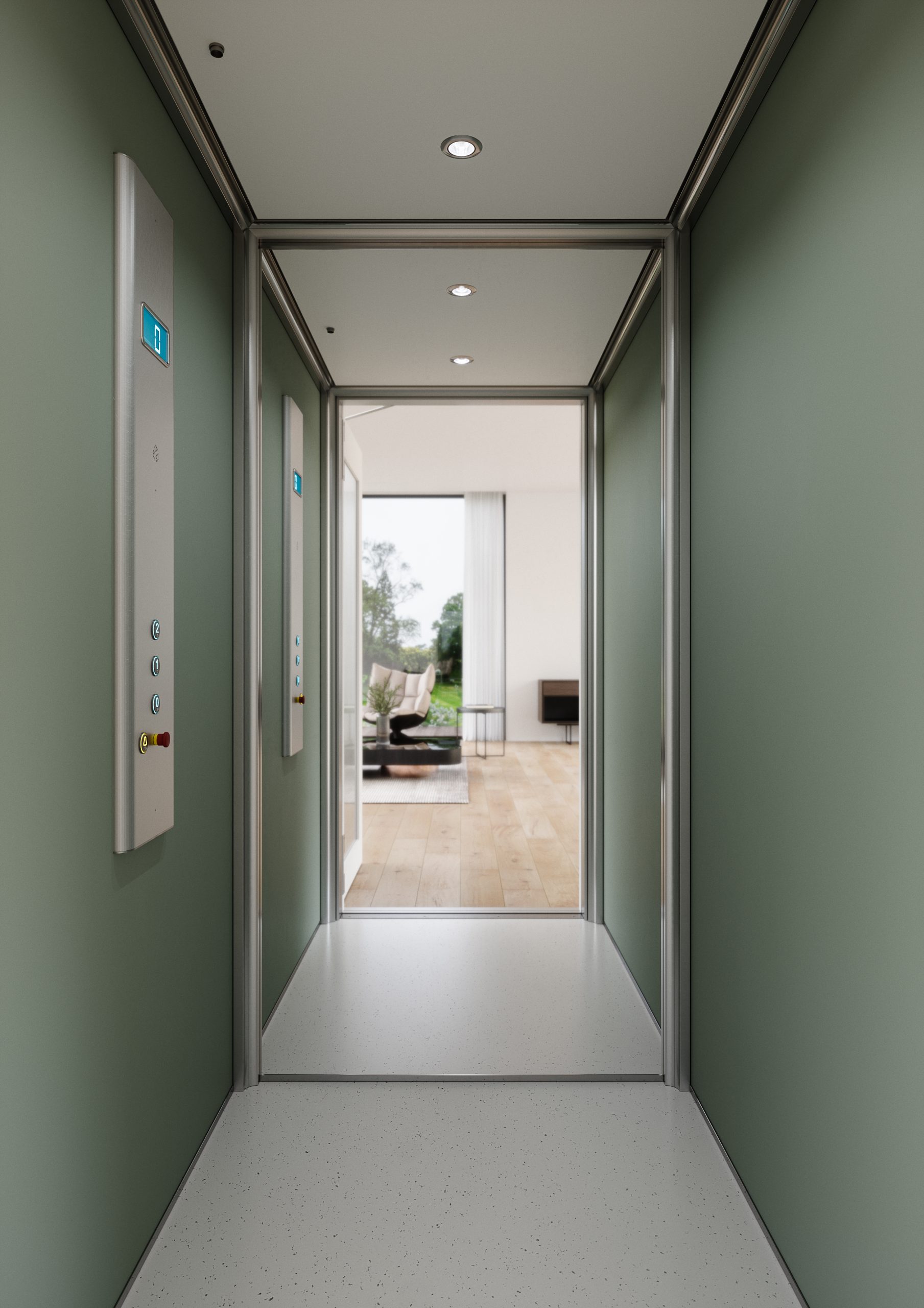

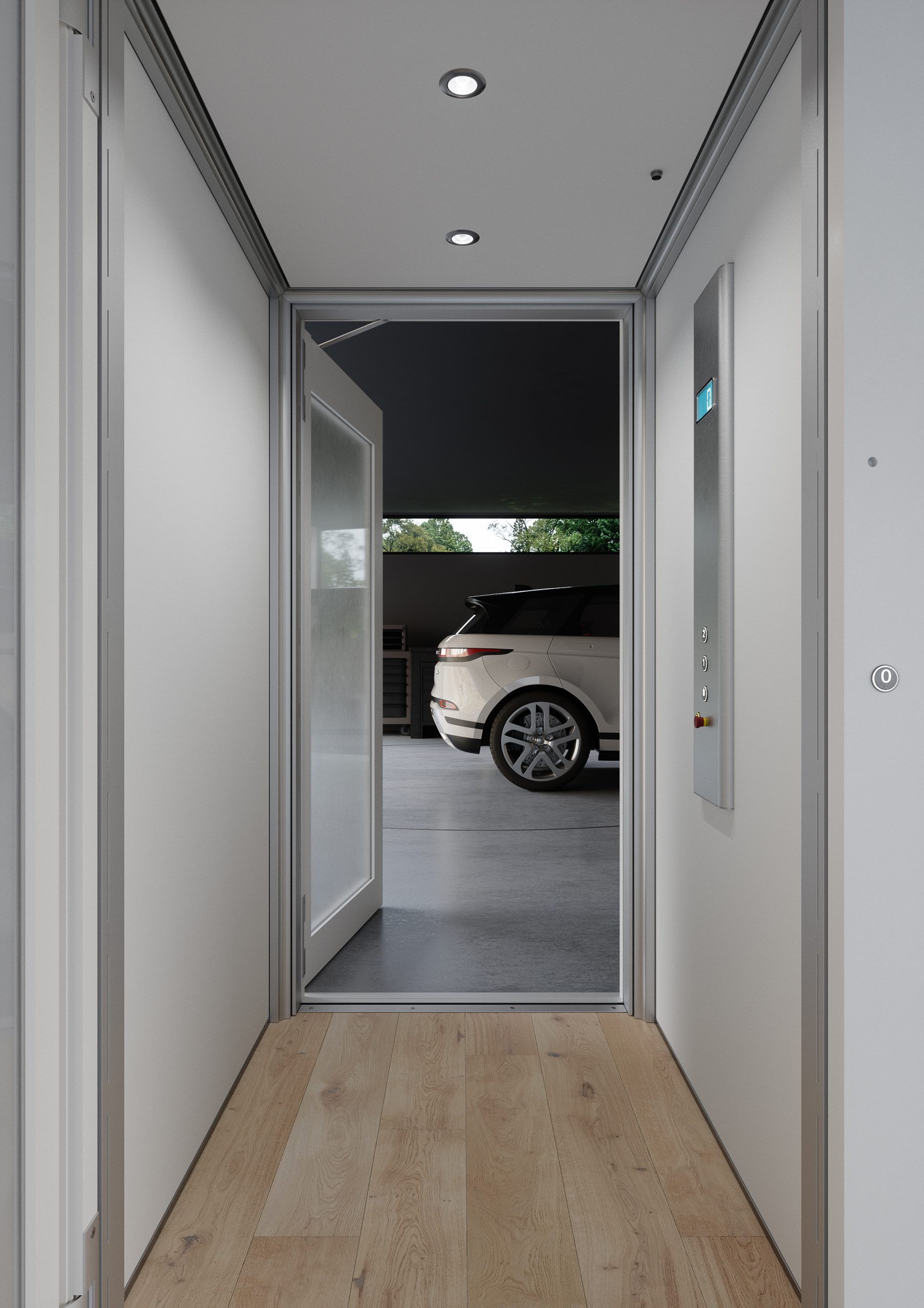

Internal cabin dimensions with masonry shaft: Single entrance W 930 mm x D 1270 mm, through car entrance L 930 mm x P 1300 mm;
-
Internal cabin dimensions with AU shaft: Single entrance W 930 mm x D 1270 mm, through car entrance L 930 mm x P 1310 mm;
-
Available with up to two entrances (single-entry or through car);
-
Quiet operation, consistent speed, and odor-free;
-
Australian design registration.
Home lift
HLB
Low energy consumption, simplified installation, unmatched aesthetics.
Designed to ensure high efficiency and performance, the HLB features an electric motor with a gearbox, combined with belt drive, an advanced, quiet technological solution.
Launched in 2018 to overcome the limitations of hydraulic and screw-driven technologies, the HLB is the ideal choice for residential environments. It has established itself as the most versatile product in the Eltec Lift range, thanks to its high customisation potential, silent operation, and consistent performance.
The cabin dimensions can be tailored to the intended use, ensuring a perfect fit for both compact spaces and larger areas.
With refined lines, premium materials, and a wide range of finishes, the Eltec HLB suits renovations and new builds alike across residential, commercial, and public settings, guaranteeing seamless aesthetic and functional integration in any architectural environment.
-
Fully customisable;
-
Minimal space requirements: 180 mm pit depth, minimum headroom 2520 mm, special versions with 2390 mm headroom, maximum travel 20 m;
-
Minimum masonry shaft dimensions: W 1090 mm x D 910 mm;
-
Minimum and maximum internal cabin dimensions: W 670 mm x D 720 mm / W 1250 mm x D 1400 mm;
-
Capacity up to 400 kg; Speed 0,30 m/s;
-
Up to three access points available;
-
Quiet operation, consistent speed, and odor-free;
-
Low energy consumption and guaranteed efficiency according to VDI 4707 Part 1:2009 – Certificate no. NL20EPCL1003-588-18 dated 15-06-2020;
Home lift
HLB+
Your HLB. Boosted.
HLB+ is a solution designed to offer increased load capacity through the use of a gearless motor (450 kg) and the option to enlarge the cabin dimensions, providing greater space and comfort. The technical specifications and configurations of the HLB+ are tailored to the structural and design requirements of each project.
By working closely with our clients, we define the applicable configurations together through a dedicated consultation, based on their specific design needs.
-
Fully customisable;
-
Minimal space requirements: Pit depth 180 mm, minimum headroom 2600 mm, maximum travel 20 m;
-
Minimum masonry shaft dimensions: W 1090 mm x D 1160 mm (side mechanics, single swing door at floor)
-
Minimum and maximum internal cabin dimensions: W 670 mm x D 910 mm / W 1250 mm x D 1400 mm;
-
Capacity up to 450 kg; Speed 0,30 m/s;
-
Up to three access points available;
-
Quiet operation, consistent speed, and odor-free;
-
Low energy consumption and guaranteed efficiency.
